Presque Isle North Pierhead Light Erie, PA.


One of two lights at Presque Isle in Erie Pa.



According to a legend passed down by the Erie Indians, Manitou, the Great Spirit, led the tribe to the shores of an inland sea where they would find game in abundance and enjoy the cool, health-giving breezes coming from the land of snow and ice. One day, the Eries ventured into the great waters to discover where the sun sank in the evenings. This intrusion greatly angered the spirits of the lake who caused a terrible storm to build on the waters. Hearing the cries of his favored people, the Great Spirit stretched forth his left arm into the sea to protect his children from the turbulent water and allow then to paddle their canoes safely back to shore. Where the benevolent arm of the Great Spirit had blocked the waters, a vast sand bar formed which ever since has provided protection and a safe harbor to his favorite people, the Erie.
Early view of Pierhead Lighthouse
Many nations have benefited from the protection provided by the arching sand bar located along Pennsylvania’s Lake Erie shoreline, and the uniqueness of the peninsula, named Presque Isle or “almost an island” by the French, does make one wonder about its origins.
The present white tower with its distinctive black band that is mounted on the outer end of the north pier forming the entrance to Presque Isle Bay and Erie Harbor has been guiding mariners since 1857. Known as the Presque Isle North Pierhead Lighthouse or Erie Harbor Pierhead Light, the beacon has a design that is unique among surviving U.S. lighthouses. The lighthouse exhibited a fixed red light until 1995, when its fourth-order Fresnel lens was removed, and a modern flashing red light was installed in its place. The classic lens can now be seen at the Erie Maritime Museum.
An inspection report of 1837 noted that Erie Harbor, which it called “the largest and best to be found on Lake Erie,” was served by a lighthouse and a beacon. The lighthouse was the Erie Land Lighthouse, which had been erected on a bluff overlooking the harbor in 1818, and the beacon was a light at the entrance to the bay that had just been established. In fact, Congress had appropriated $674 on March 3, 1837 for “completing the beacon-light at the end of the pier which forms the entrance into the harbor of Erie.” The 1837 report indicated that the beacon was “so situated that it cannot be seen by vessels running down the lake until they are very close to it,” and thus recommended that vessels use the lighthouse to gain the upper entrance to the harbor and then follow the beacon light.
In 1854, the wooden beacon light received a “catadioptric apparatus of the sixth order, illuminating an arc of 270°,” which replaced the former apparatus that had be described as being “very defective.” The beacon light and its new sixth-order lens were destroyed the following year, when a vessel entering the harbor during a gale struck the tower. A lens lantern suspended from a gallows frame was displayed on the pier until a replacement tower could be built.
By 1903, the lower portion of the tower, which was originally open, had been sheathed with wood and covered with metal shingles. Steel plates were later placed on the lower portion.
An itemized cost sheet from 1855 records that $1,731 was needed for the labor and materials to build up a new twenty-eight by thirty-three foot pierhead at Erie, Pennsylvania from two feet below the water to seven feet above. The estimated cost for plates, bolts, braces, stairs and railing to construct a two-story, cast-iron tower was $939, while $432 was the expected cost for the lantern. Painting was to run $215, freight $100, superintendence and labor for the tower and lantern another $900. After adding 10% for contingencies and $502 for a sixth-order Fresnel lens, the total cost for a new pierhead and beacon was an estimated $5,250.
The new Presque Isle North Pierhead Lighthouse commenced operation in 1857 and was similar to one built at the same time for Huron Harbor, Ohio. The iron tower stood twenty-six-and-a-half feet tall, and when originally built, the lower portion of the tower was open showing its spiral staircase, and only the watchroom beneath the lantern room was enclosed.
In addition to the pierhead light, various range lights have served nearby to help mariners enter the harbor over the years. In 1854, the Lighthouse Board adopted range lights that had previously been privately maintained. An 1857 Light List shows that there were three range beacons in use at Erie: one on the west end of the pier and two on the peninsula northwest of the pier.
In 1872, new octagonal frame towers were erected on the east and west ends of the recently extended pier to serve as a range for entering the harbor. At this time, the 1857 iron tower was on a crib behind the pier. A fog bell was established at the eastern end of the pier in 1880.
In 1882, the iron tower was moved to the outer end of the pier, and the fog bell was placed in its base. The light's characteristic was changed from fixed white to fixed red at this time. An elevated walk, with a length of 934 feet, was built between the iron tower and the keeper's dwelling in 1883. During the same year, the lenses in use at the North Pierhead Lighthouse and at Crossover Island Lighthouse in New York were swapped, with the North Pierhead receiving a fourth-order lens and Crossover Island a sixth-order lens.

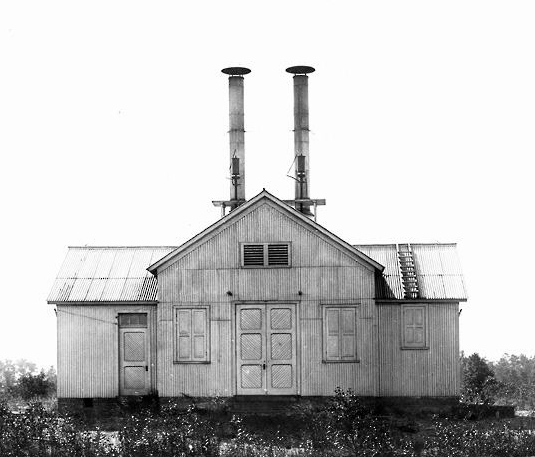

Steam fog whistle that operated from 1899 to 1924
Photograph courtesy U.S. Coast Guard
The north pier was extended 450 feet during 1891, forcing the relocation of the iron tower and its fog bell and the addition of more elevated walk. In 1889, a fog signal building was built on the tip of the Presque Isle Peninsula, about a mile-and-a-half north of the pierhead station, and a ten-inch steam whistle commenced operation on August 1 of that year, sounding a five-second blast every thirty seconds when needed.

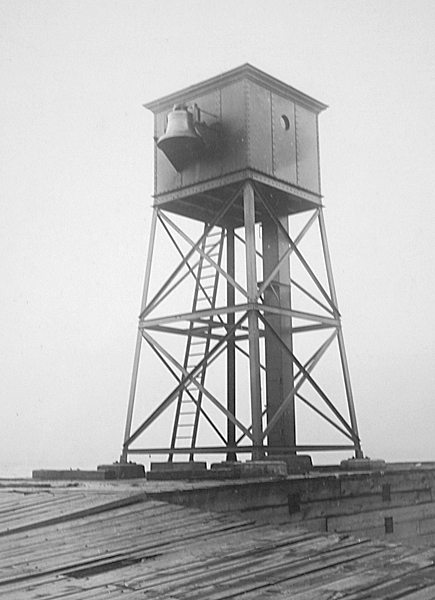

As the steam whistle was added to the responsibilities of the North Pierhead Station, a second assistant keeper was appointed, and in 1900 a new duplex was built for the head keeper and first assistant, while the second assistant was assigned to the old dwelling. Also in 1900, the fog bell was removed from the base of the iron tower and placed in a open framework structure at the end of pier, which had been extended 470 feet. The open framework structure had previously been used to exhibit a light on the pier at Dunkirk, New York. By 1911, a metal bell tower, with an enclosed upper portion and a square column that served as a drop tube for the weights that power the fog bell striking mechanism, had been placed east of the iron light tower.
An allotment of $38,500 was provided in 1923 to electrify the lights on the pierhead, to build a new compressed-air fog signal 500 feet east of the steam whistle, to erect a new steel tower for the western light on the pier, and to construct a new boathouse. Commercial electricity was supplied to the station via a submarine cable, but a generator was also installed in a new powerhouse at the station in case of a power failure.
The lights on the pier were electrified on July 18, 1924, and the new diaphone fog signal, which was housed in a steel tower and could be operated by remote control from the powerhouse, commenced operation a few weeks later on August 6, replacing the outdated steam whistle. The panorama picture below shows the north pier in 1924 with the following structures:
  1. Presque Isle Pierhead Lighthouse - a fixed red light shown from a white and brown pyramidal tower near the far right of the picture with a red, square, pyramidal bell tower 165 yards east of it.
  2. Erie No. 1 Light - a fixed white light shown from a thirty-nine-foot-tall white, square, pyramidal tower located near the far left. This light functioned as part of a range.
  3. Erie No. 2 Light - a fixed white light shown from a seventy-five-foot-tall mast with a black circular daymark. The light functioned as a range and can be seen above the trees, just left of the duplex.
  4. The lifesaving station's lookout tower and boathouse, located between the range lights.
Panorama picture of north pier taken in 1924 - click on the picture for a larger image.
Photograph courtesy U.S. Coast Guard
The 1857 tower was relocated to its present location in 1940 at which time it was outfitted with its present heavy steel plates and also became home to a tyfon air signal, which replaced the fog bell on the pier. A class "C" radiobeacon was established at the station in 1941.
A string of at least sixteen head keepers, starting with Samuel Foster and ending with Walter Korwek are known to have served at the light. Keeper Robert Allen, who had the longest tenure as head keeper, received many accolades during his service. In 1913, he was awarded a lifesaving medal for rescuing two people who were about to drown while swimming near the pier. Victor Osburg was teaching Ruth McLaughlin to swim, when the current swept the pair into deep water. Keeper Allen was on the pier lighting up the beacon and quickly tied a line to a mop handle, which he was able to toss out to Osburg. After reeling the man in, Keeper Allen removed some of his clothes and plunged into the water after Miss McLaughlin, who had sunk by this time. Keeper Allen swam some sixty yards and then dove down, retrieved the woman, and brought her to the pier. A lifesaving crew had arrived on the scene by this time, and, after expelling water from Mrs. McLaughlin, they performed artificial respiration for four minutes before she finally revived.
Keeper Allen was awarded the lighthouse efficiency pennant for having the best-kept station in the district in 1914 and 1915. In 1918, Allen helped extinguish a fire aboard the fishing tug Gannet, and the following year, he and his assistants were recognized for helping rescue the crew of the steamer Tempest, which foundered in the channel near Erie Harbor. Finally, in 1925, Keeper Allen helped extinguish a fire that raged on the peninsula for several days.
The historic North Pierhead Lighthouse is now a popular destination for fishermen and for people just wanting to take a picturesque stroll in Presque Isle State Park.
